SPECIFICATIONS

Average Life (hrs): 50000H

Brand Name: YSRSAI

Certification: CCC,ce,CE,RoHs

Choice: yes

Color Temp(K): 2700K-6500K

Control: Voice / App control

Dimmer: Zigbee Dimmer Control

Feature 1: Without Dark Area

Feature 2: Super Flexible

Feature 3: Linear Dimmable

Feature 4: Super Power Saving

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: sharp

LED Chip Model: COB

LEDs Number/M: 608

Luminous Flux: 2000-82000

Model Number: YSR-CGD-RGB

Nominal Voltage: Other

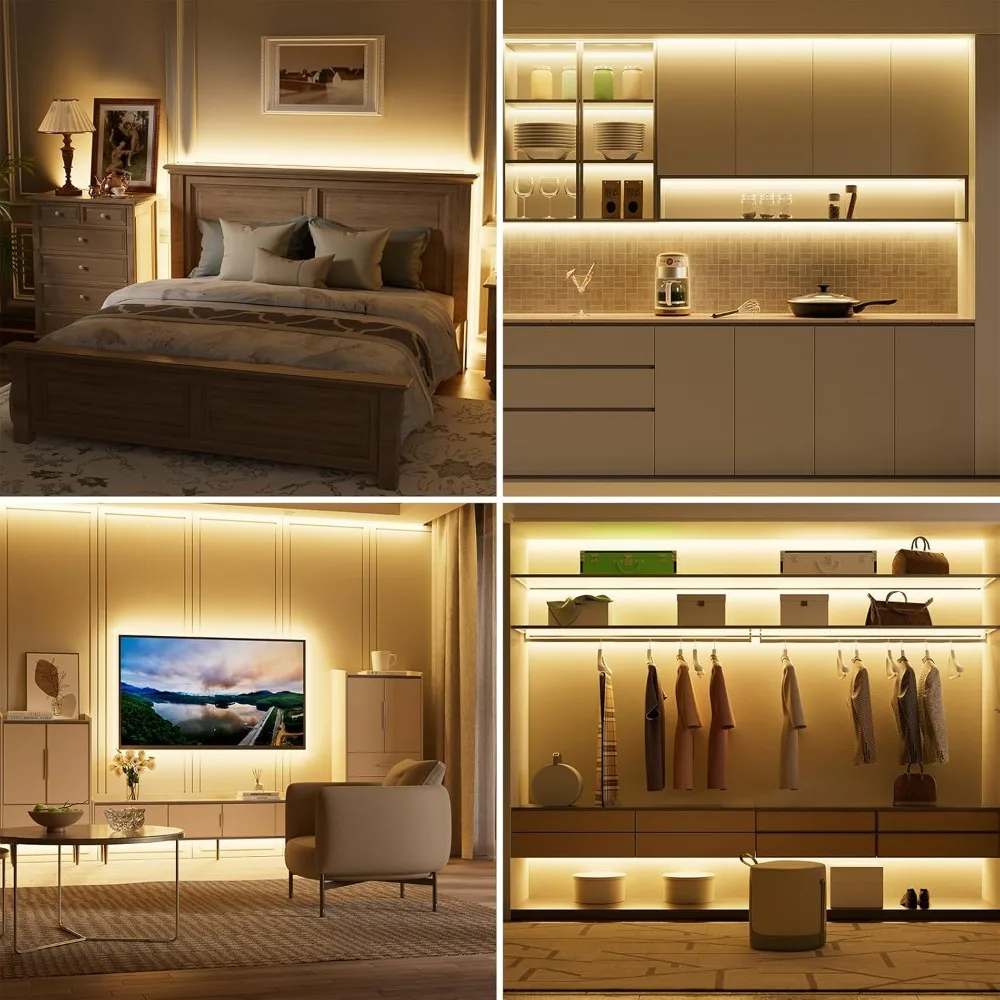

Occasion: Living room

Occasion 1: Bedroom or Cabinet

Occasion 2: Hotel or Office Building

Occasion 3: Shopping Mall

Occasion 4: Home Decoration

Optional Length: 5m/10m

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 608

Strip type: COB

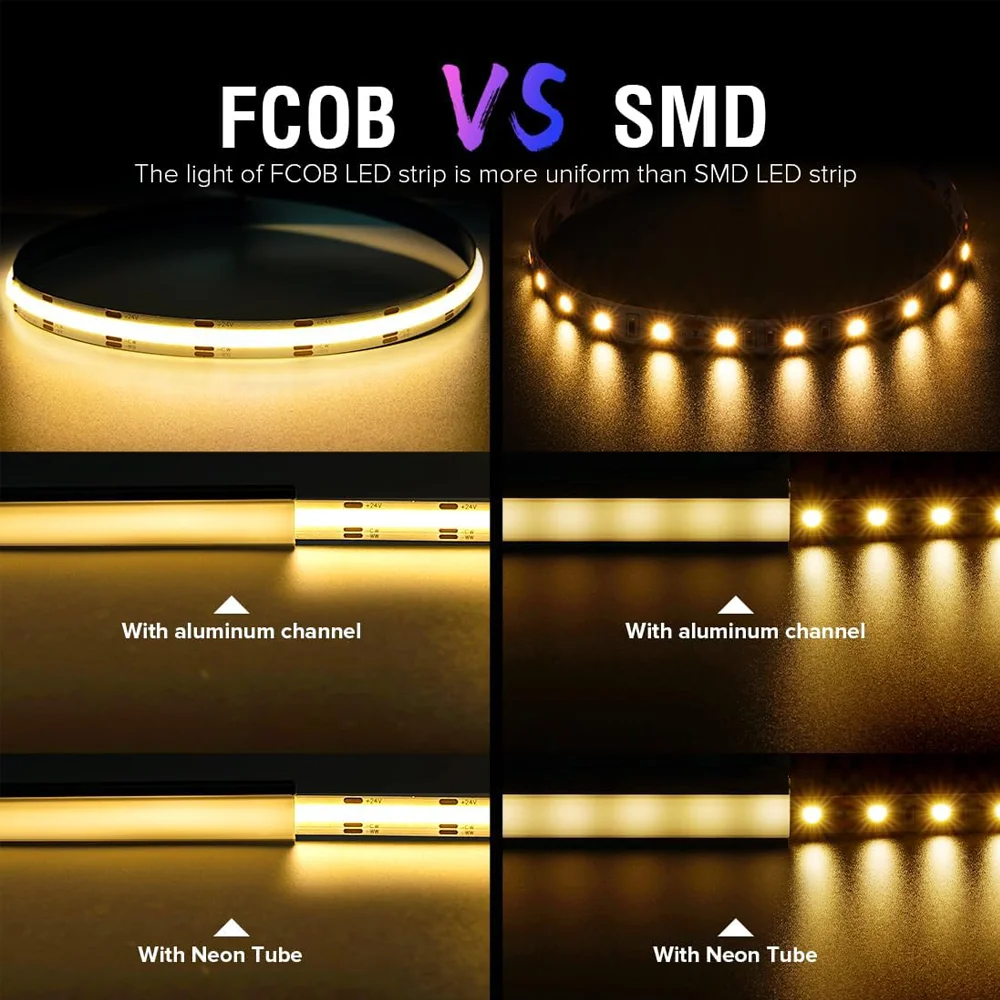

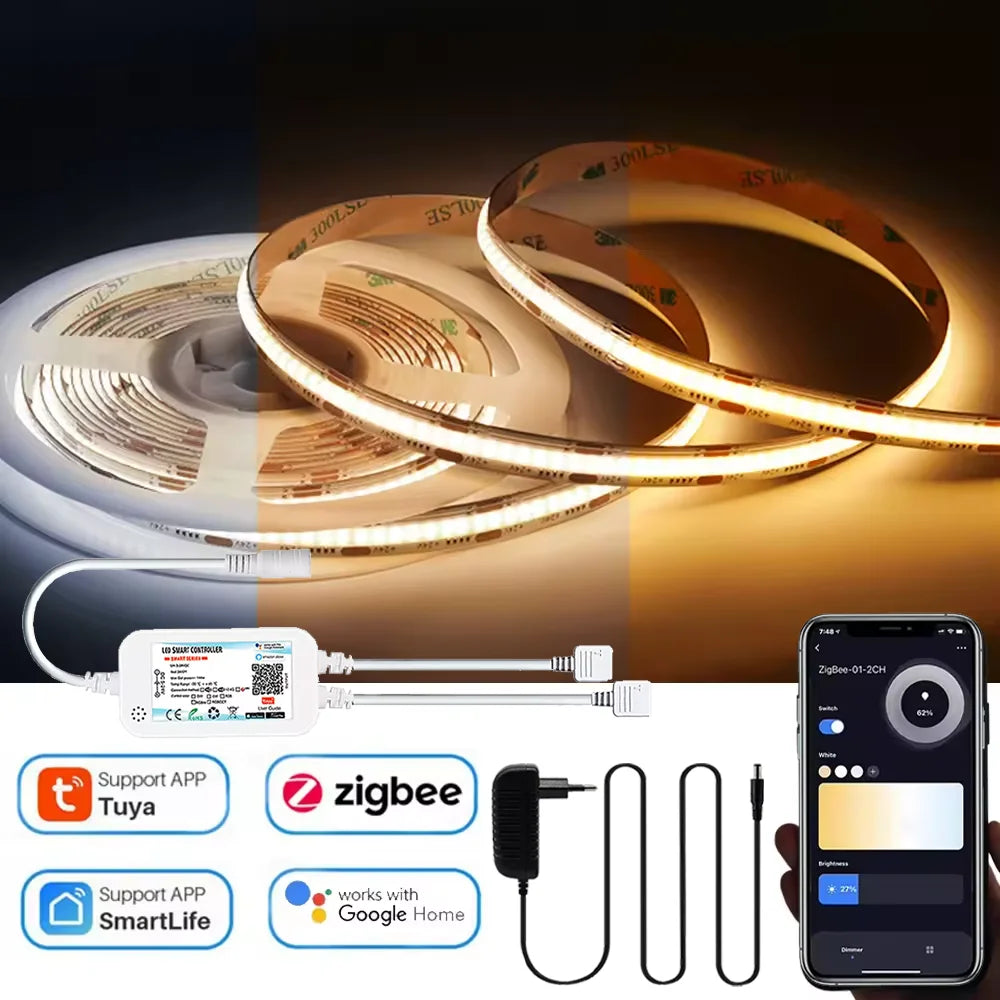

Type: FCOB CCT LED STRIP

Voltage: 24v,DC24V

Waterproof: No

work with: Smarttings/Alexa / Google

Please note:

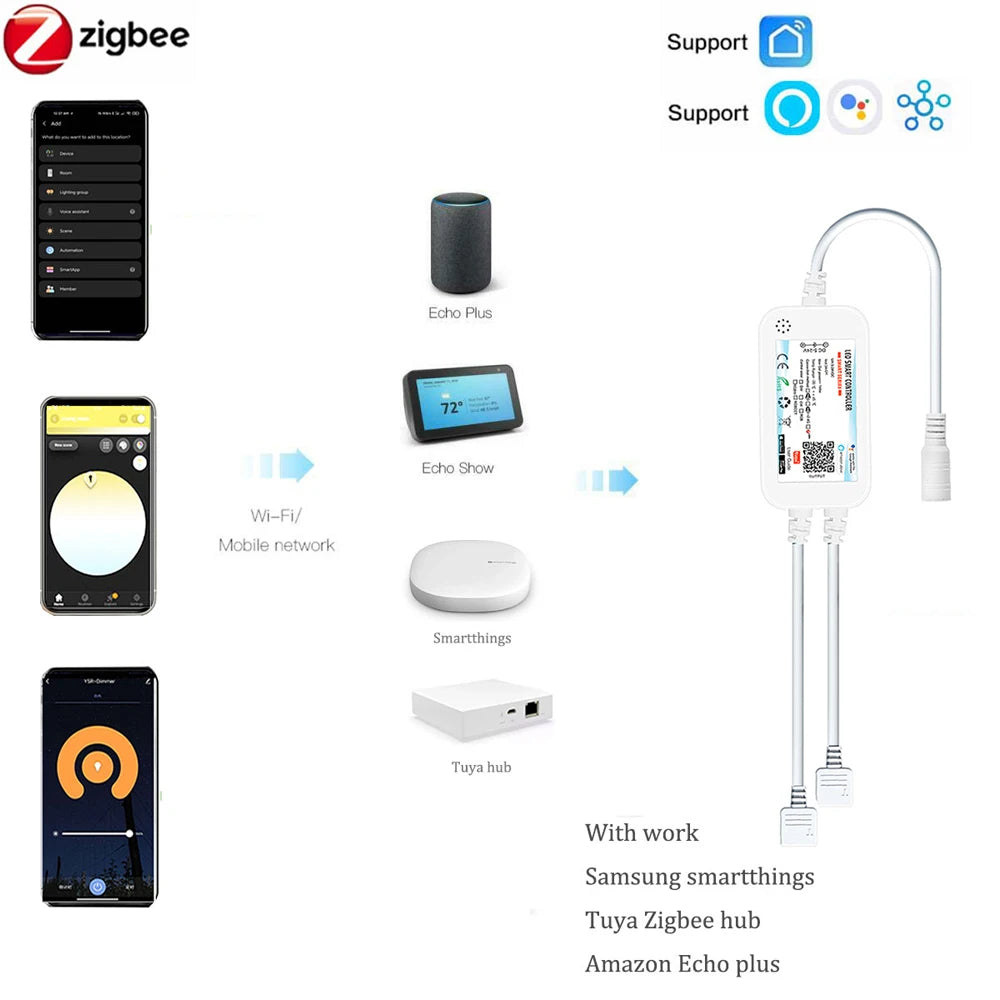

How to connect to the gateway: The led controller adopts the zigbee 3.0 protocol, which requires a zigbee gateway to cooperate. For example, Smartthings, Tuya zigbee hub, Echo plus(If you need to buy tuya zigbee gateway, please contact us)
1. How to enter the network distribution state: turn the device on/off after 5 consecutive times, the led light bar will start to breathe and flash, and enter the network distribution state (the first time the device is powered on, it is the initial network configuration state)
2. Open the APP and add a search device,

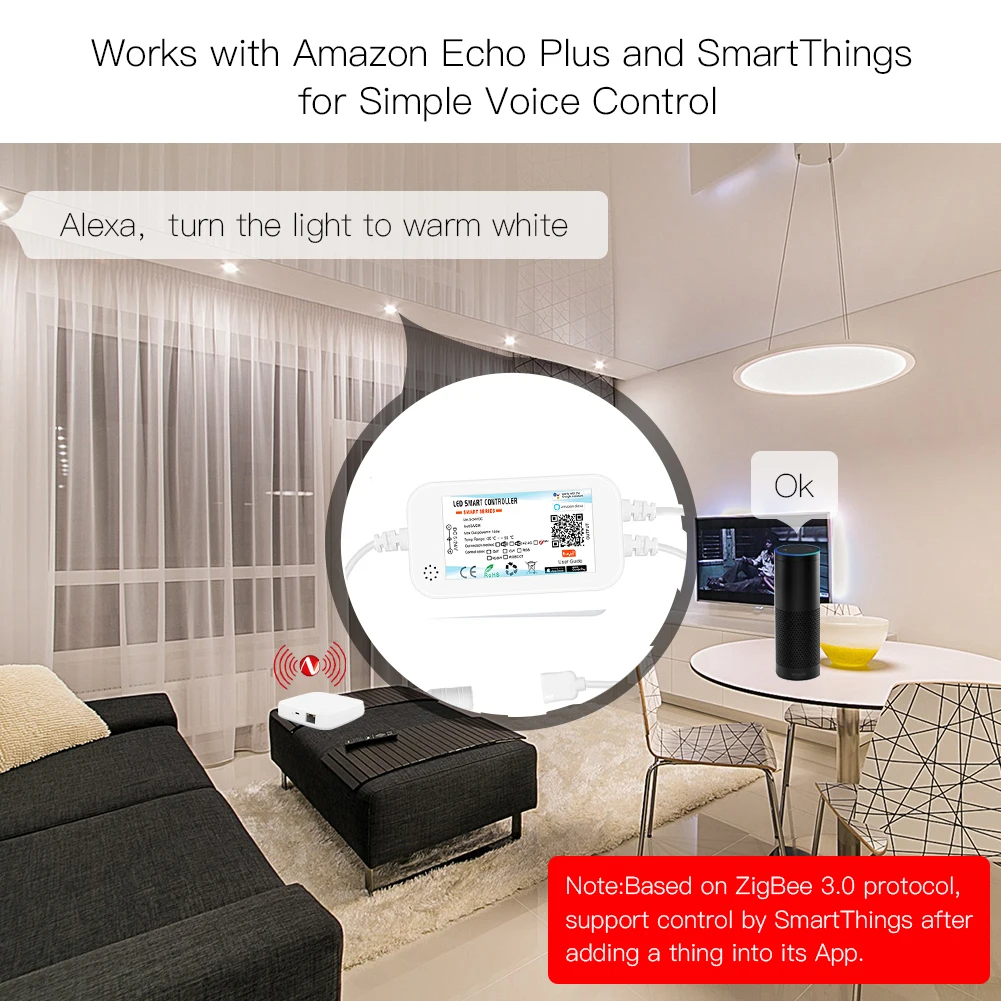

3.compatible ZigBee hub is required!work with Zigbee Tuya hub  ,Amazon ECHO Plus ,SmartThings.

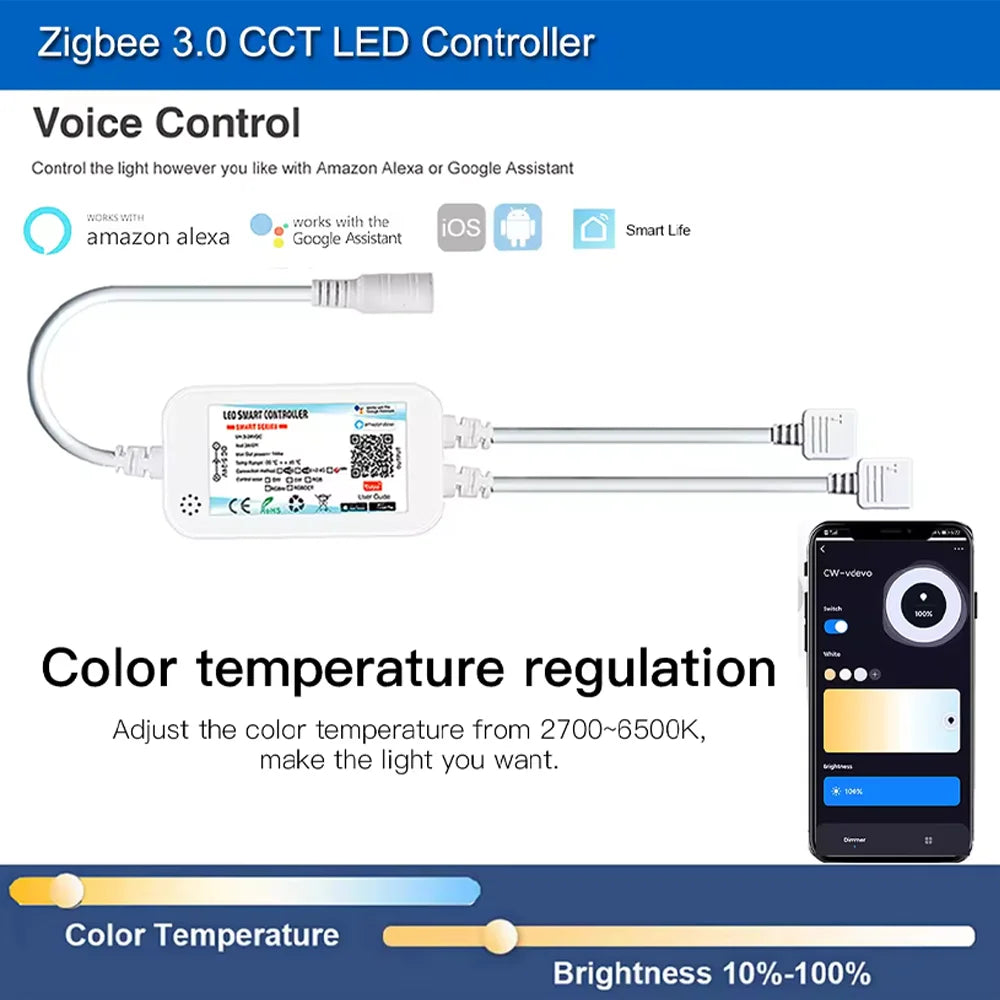

ZIGEBB LED Controller:
Support 5V-24V input, maximum current 5A dual output
This new generation of Single color CCT  controller works with the ZigBee 3.0 standard and is therefore compatible with many common ZigBee hubs/gateways,
With this controller all common types of LED products operating on 5-24V Volt basis can be controlled. This makes it suitable for LED strips, LED mounting beams, LED outdoor or pool lighting.
Voice control, Smartphone APP control.

Parameters
Model No.:YSR-MINI-Z02
Voltage: DC5V-24V
Output: Max. 3A/Channel, Total output Max.5A
Product Name:ZIGBEE Strip Controller
Size: 30x28x11.5mm
Operating Temperature:-20-60°

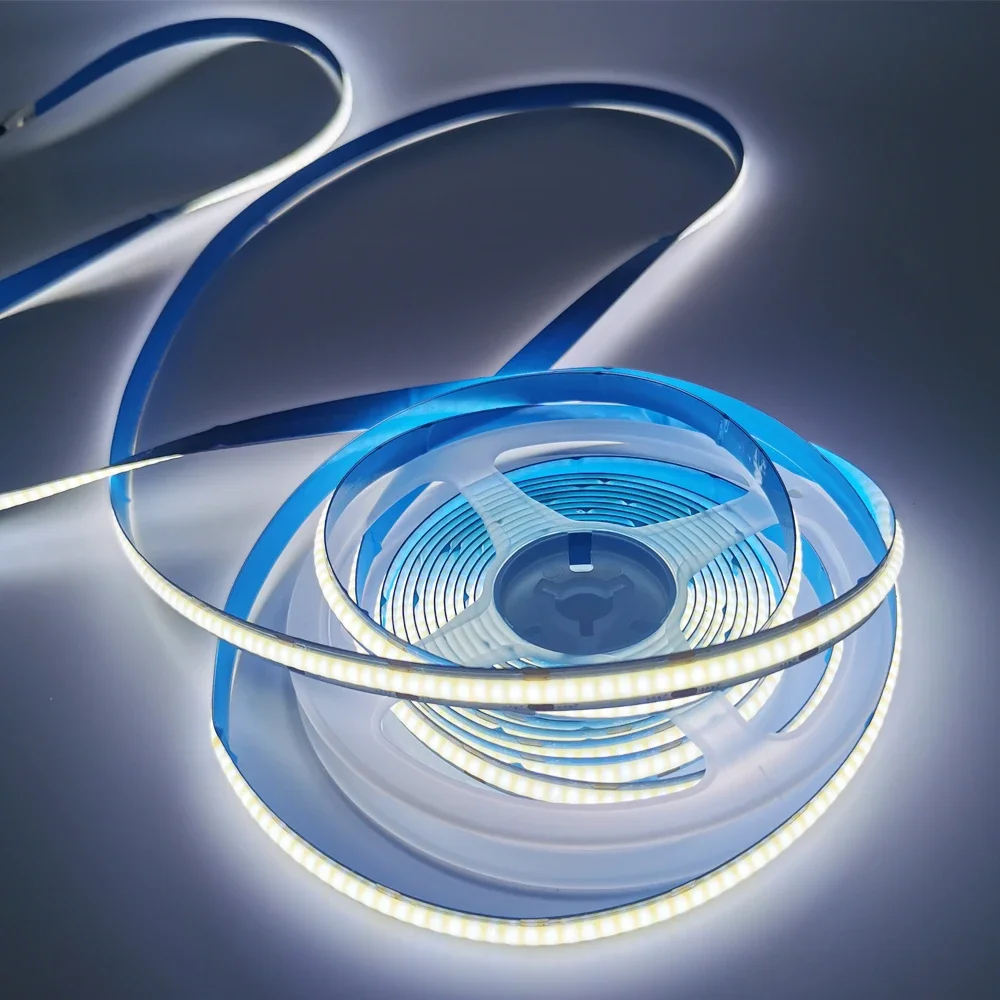

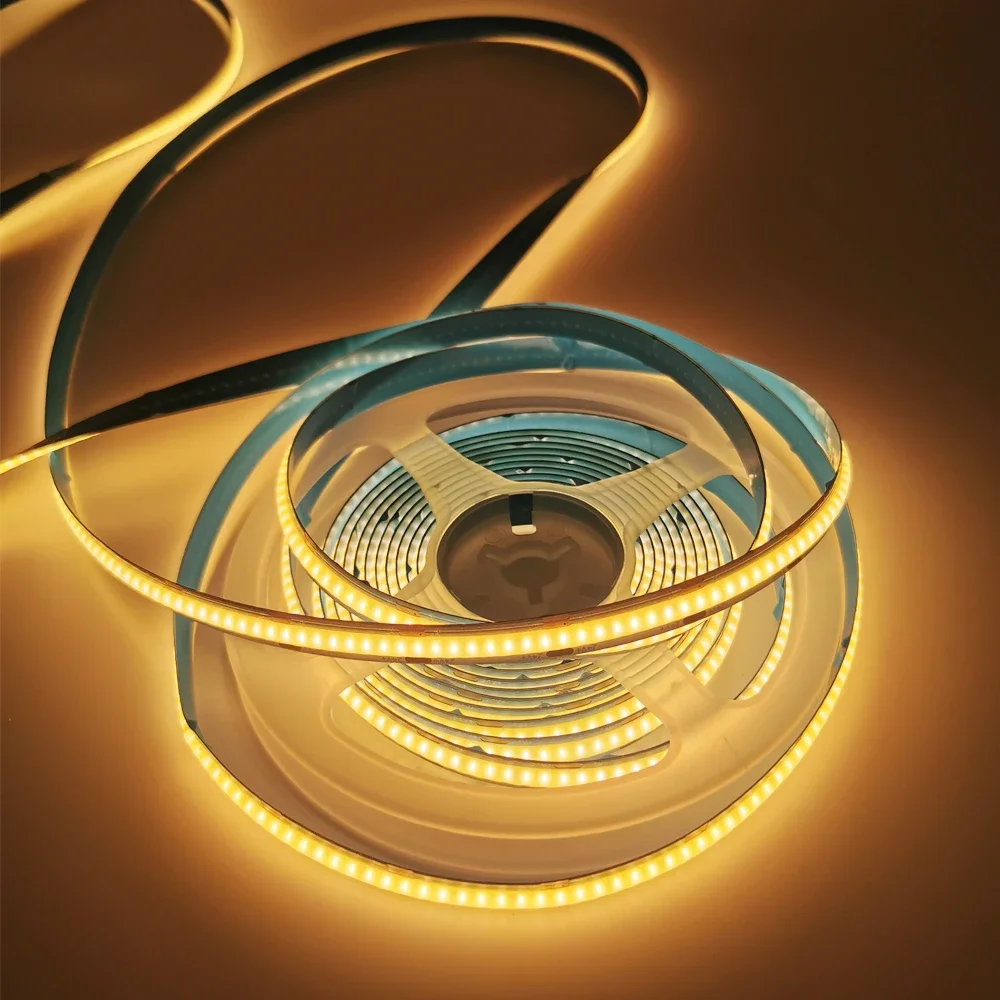

Led Lights Specification:

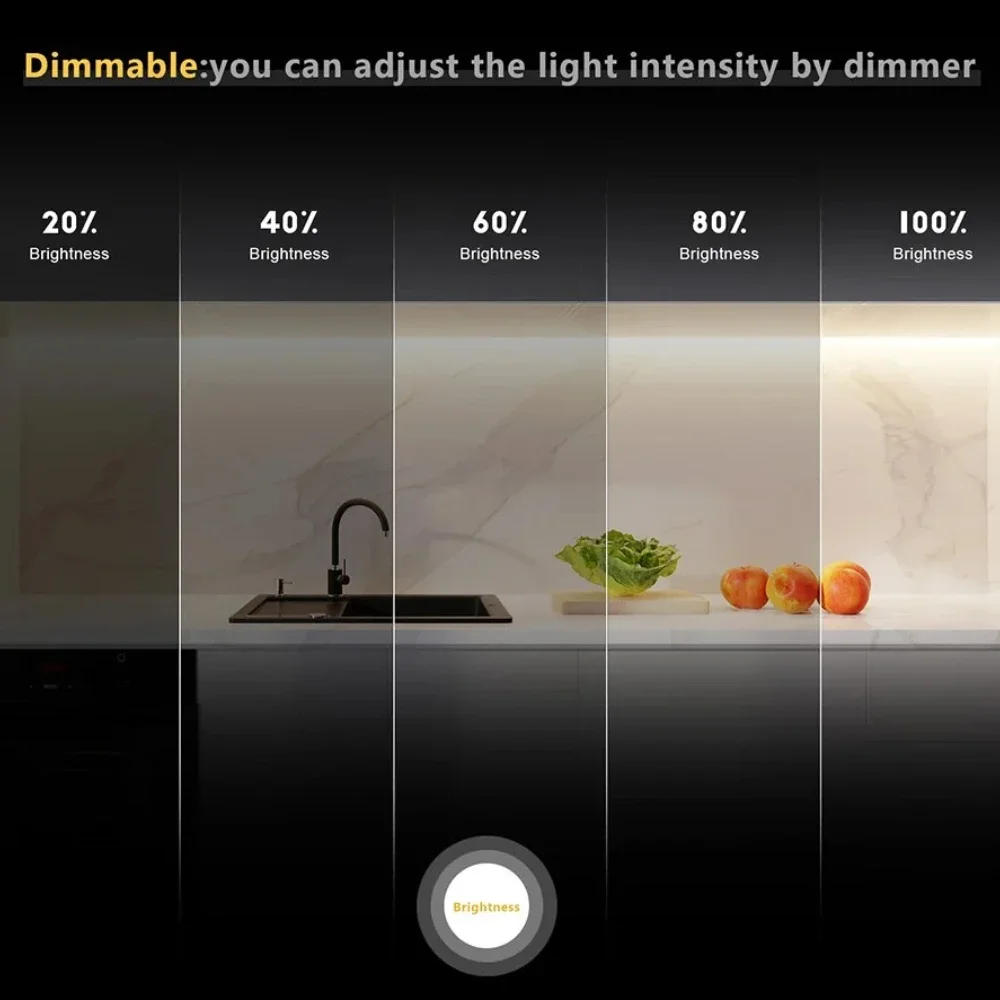

Dimmable: Yes
Length: 5 meters
LED quantity: 608 LEDs/m
Input Voltage: DC24V
Wattage: 14W/m
FPCB width: 10mm

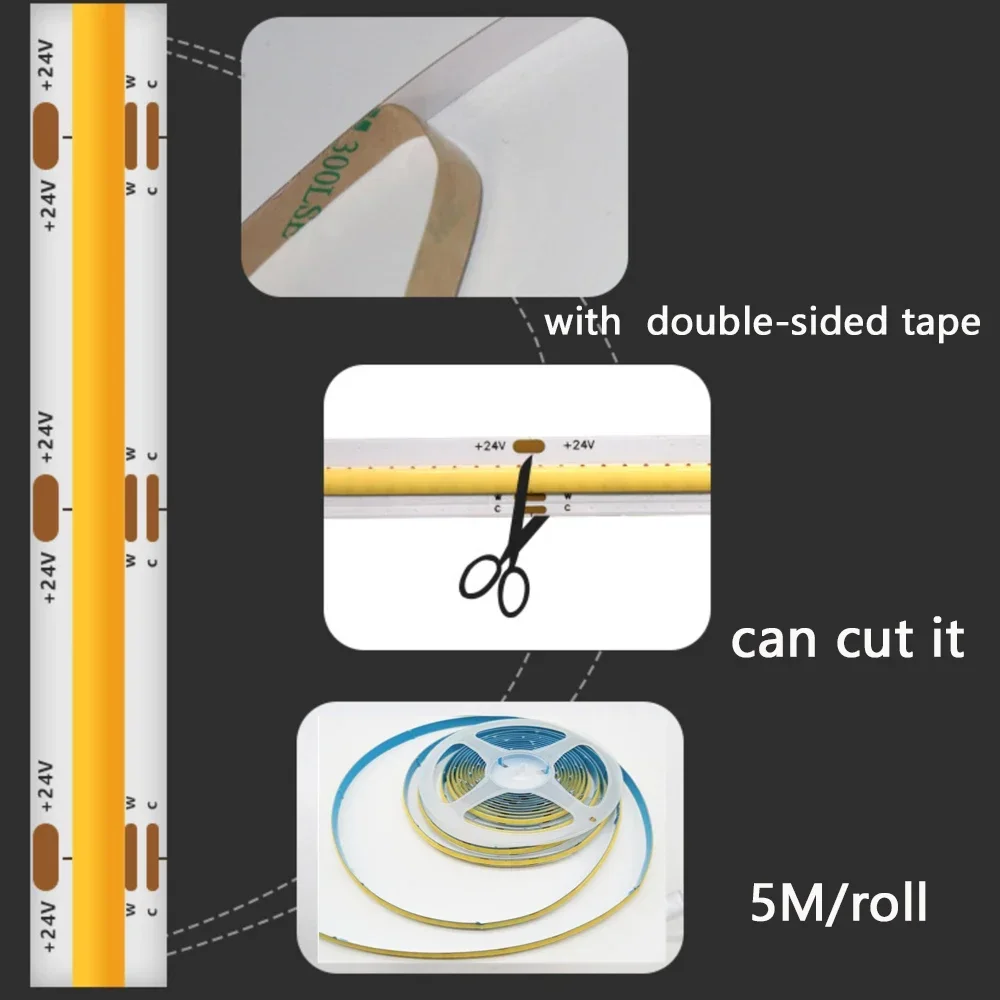

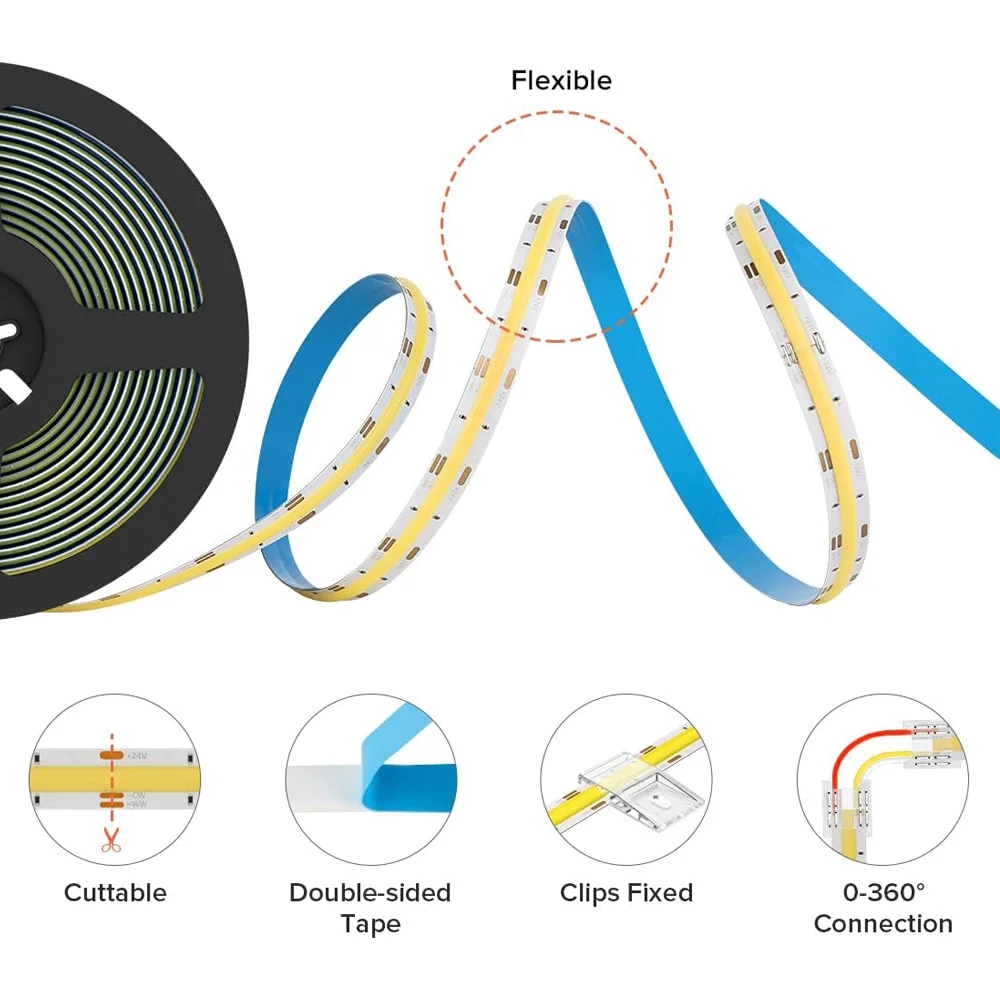

Cutting length: every 26.3mm

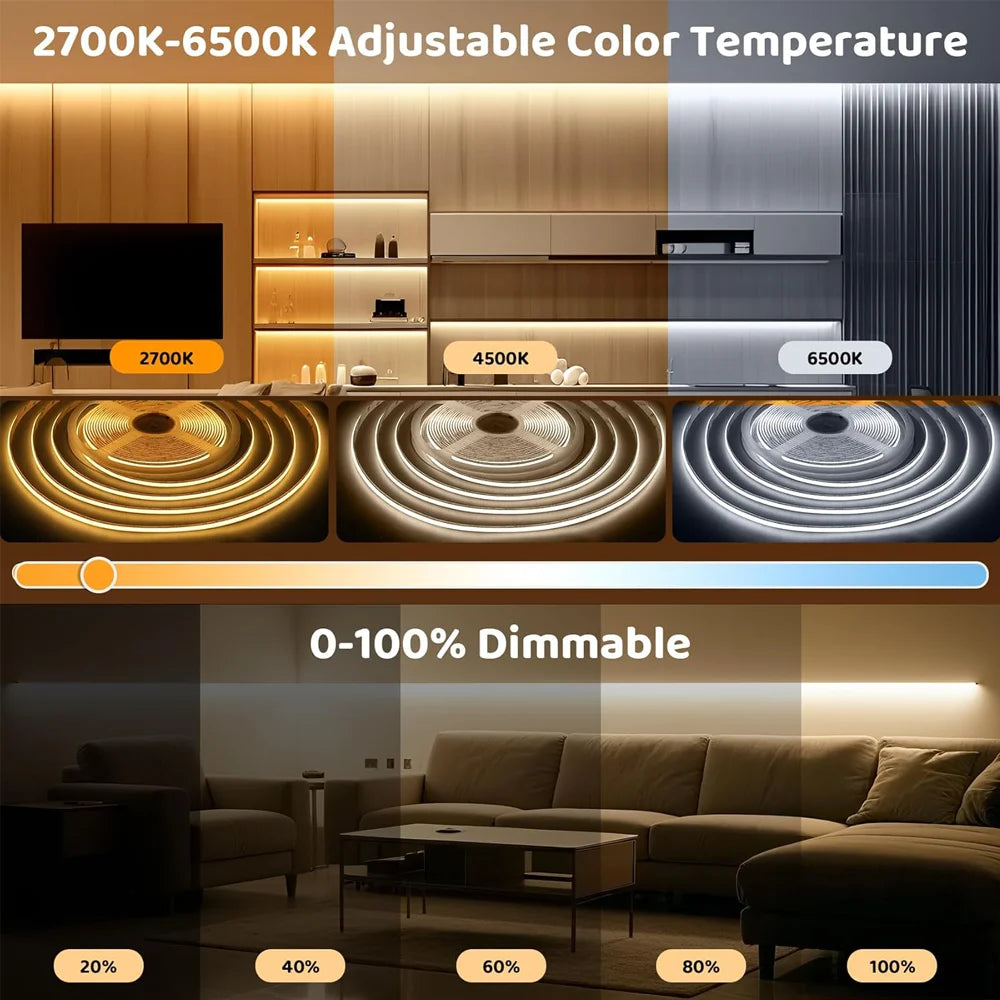

Color temperature: 2700K - 6500K Changeable.
Color Rendering Index: Ra＞90
IP Rate:IP20(non-waterproof)
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°

Tips:

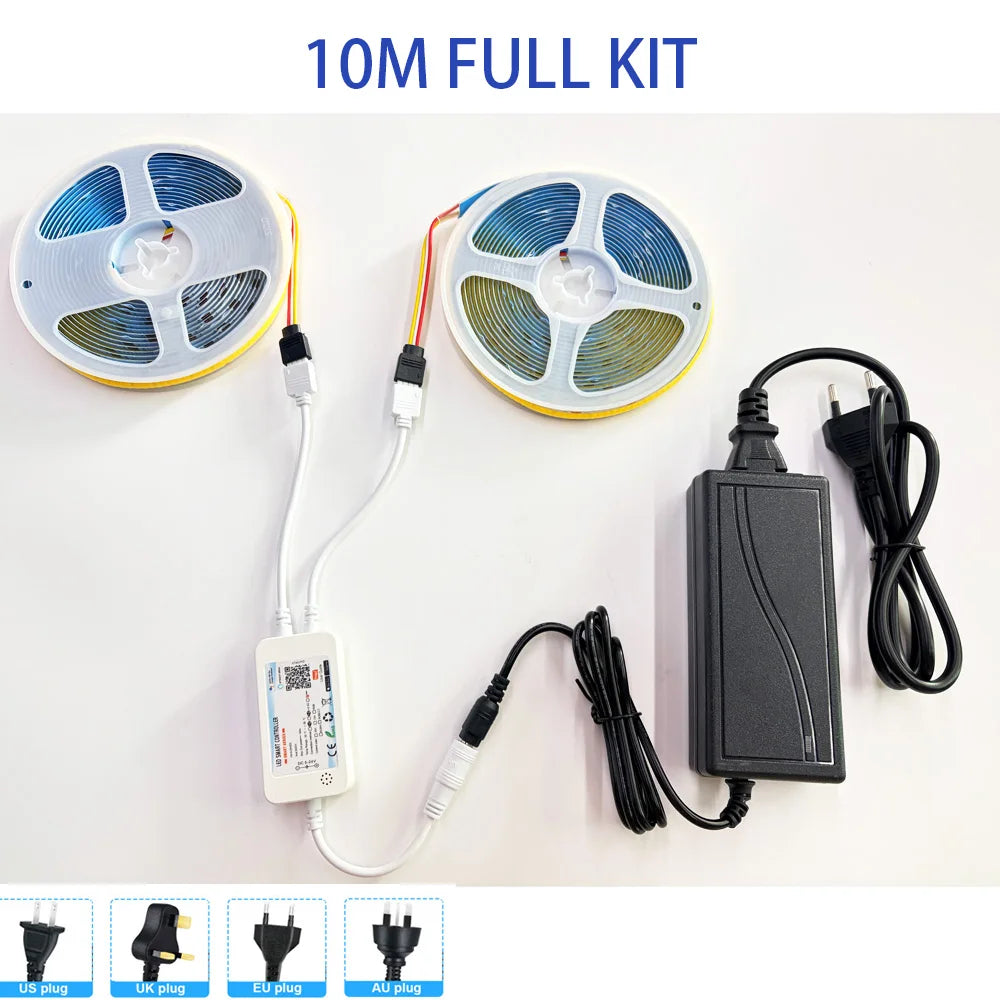

10M=2*5M

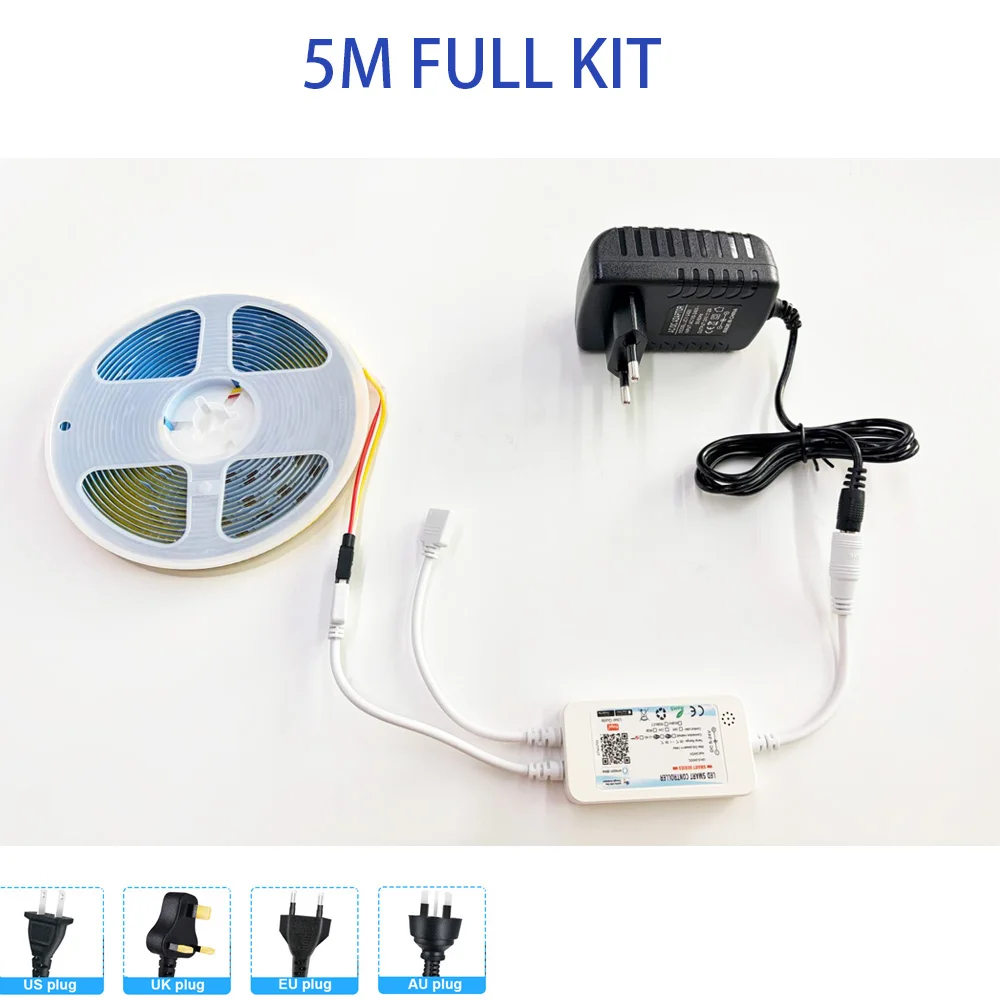

Package included
1 x COB Led Strip
1 x zigbee Control
1 x Power Adapter
